Boxled® Mini

Categories: , ,

Description

Lowbay

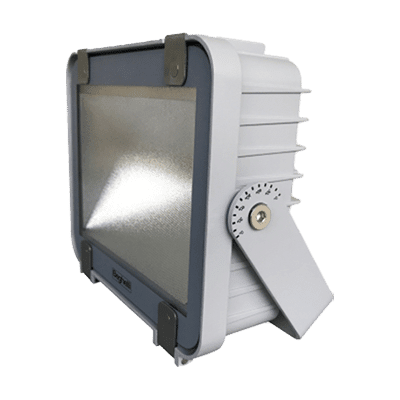

Beghelli introduces BOXLED® MINI, a lowbay luminaire for commercial and industrial applications. BOXLED® MINI features a polished aluminum reflector with symmetric or asymmetric distribution. Unit can be field changed from symmetric to asymmetric. 4mm thick prismatic tempered glass lens provides optimized light distribution for a visually comfortable and glare-free environment.

The BOXLED® MINI is a wet location, IP66, NEMA 4X rated luminaire. Heavy duty die-cast aluminum construction provides corrosion, flame and chemical resistance. The 3G rating makes this ideal for constant vibration applications. Precision designed optics, multiple distributions and lumen outputs make the energy-efficient BOXLED® the ideal solution for damp or wet installations including loading docks, signage, car wash, agriculture, service corridors, landscape and marinas.

Features:
  • Nema 4X/ IP66.
  • 4mm tempered glass diffuser.
  • Symmetric & Asymmetric in-field adjustability.
  • 3G rated for high vibration areas.
  • Die cast aluminum housing w / stainless steel hardware.
  • Title 24 & Title 20 compliant.
