CASTEX 150 (HZCAS150)

Description

HAZARDOUS

Beghelli launches CASTEX, a family of rugged, classified LED fixtures ideal for use in areas made HAZARDOUS by abnormal conditions, resulting in the presence of flammable vapors, gases or combustible dusts.

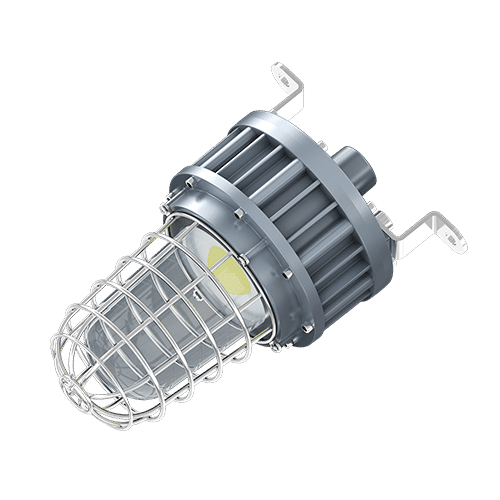

The CASTEX 150 (HZCAS150) is a hazardous location light that is classified for Class I, Division 1, Groups C and D; Class I Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class II, Division 2, Groups F and G; and Class III.

CASTEX has different mounting options (surface, wall and pendant mounts) equipped with integral hub set screws for vibration resistance.

The heavy-duty, integral aluminum housing serves as a high-efficiency heat sink, dissipating heat and further protecting the system.

Features:

  • MO: 30W @ 4,200 lm
  • HO: 40W @ 5,600 lm
  • 120° standard optic distribution
  • 5000K
  • HT (AC Only) -40°F up to 149°F
  • >70 CRI
  • 0-10V dimming is standard
  • HT (AC Only)
