Description

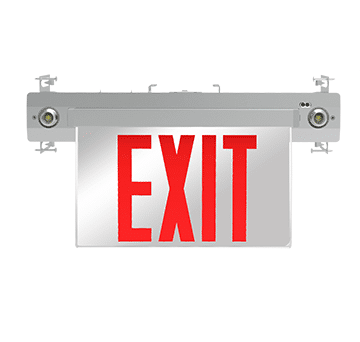

LED EDGE-LIT EXIT COMBO
CURVA COMBO (CRV C) is an architectural LED edge-lit exit combo that combines a sleek edge-lit EXIT sign with two fully adjustable recessed LED emergency heads. Designed for commercial interiors, it provides a clean, streamlined appearance while delivering dependable emergency egress illumination.
Two 2.5W LED emergency heads provide up to 68 ft on-center spacing at a 10 ft mounting height along a 3 ft path of egress. A maintenance-free NiMH battery provides a minimum of 90 minutes of emergency operation and recharges within 24 hours. Beghelli Autotest is standard.
CURVA COMBO is available in recessed or surface-mount configurations for wall or ceiling installation. The edge-lit acrylic panel is available with 6-inch red or green EXIT lettering, field-selectable chevrons, and single- or double-face configurations. Clear and mirrored panels are available, along with brushed aluminum and white finishes.
UL Listed for Damp Locations and Title 20 Compliant, CURVA COMBO is rated for operation from 5°C to 40°C (41°F to 104°F). Optional 3W remote capability is also available for compatible Beghelli remote heads.
Key Features
- Architectural LED edge-lit exit combo
- Two fully adjustable 2.5W recessed LED emergency heads
- Up to 68 ft on-center spacing
- Surface or recessed wall or ceiling mounting
- Autotest is standard
Applications
- Offices
- Classrooms
- Corridors
- Lobbies
- Commercial Interiors
