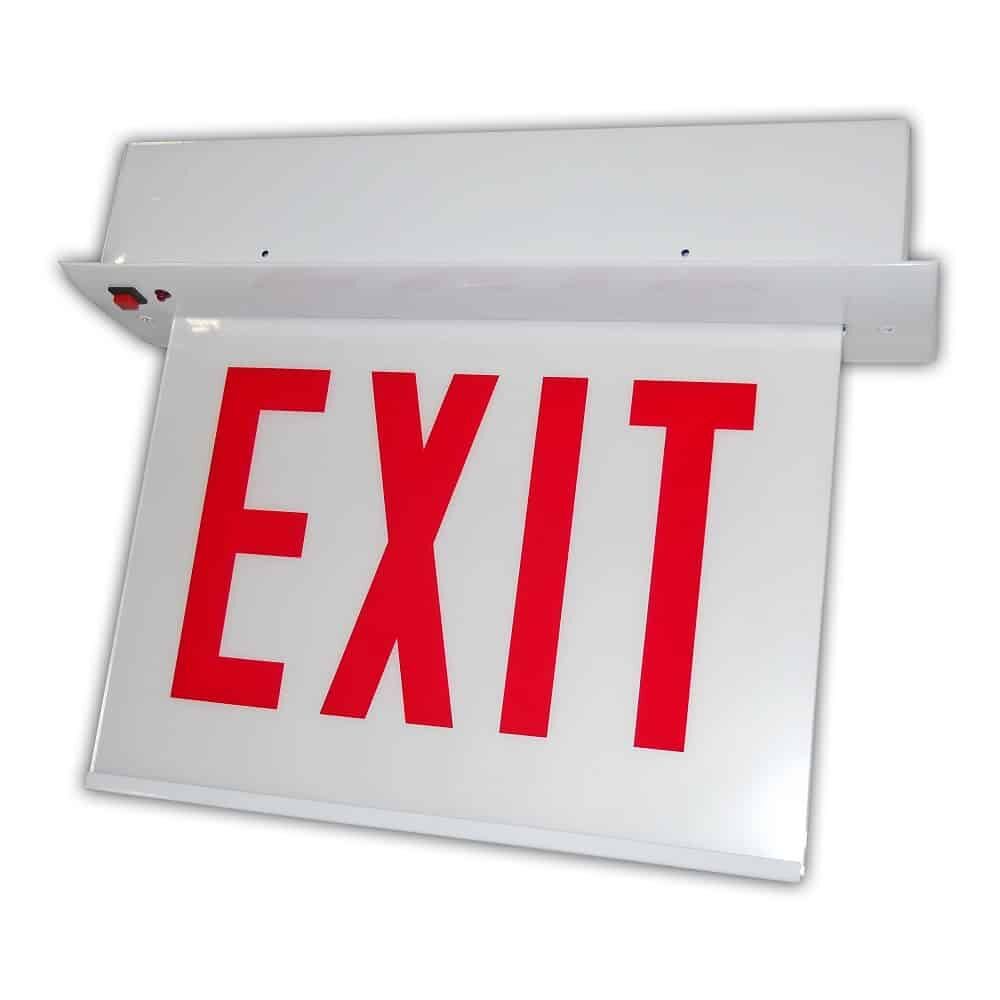

The CHREDG is a Chicago Approved premium grade, recessed aluminum, LED Edge-lit Exit/Stair sign. This edge-lit exit sign offers premium-grade, extruded aluminum housing with single or double face configurations. The UV-stabilized, silk screened white acrylic panels provide consistent, uniform illumination.

The CHREDG can be configured for AC only and self-powered operation. The extruded aluminum trim assembly is easily detachable, providing accessibility for service or maintenance and is available in aluminum or white finish.

In addition to being Chicago Approved, the CHSEDG is UL Listed for Damp Locations and meets UL924, NFPA101 Life Safety Code, NEC and OSHA local and state codes.


CHREDG Features

  • Available in aluminum or white powder-coated finish
  • Designed with a 4.8V long-life, maintenance-free Ni-Cd battery
  • Minimum 120 minutes of emergency duration
  • 120/277VAC
  • Compatible with drywall or drop-thru ceiling mount installations, wall mount capability optional
  • Meets city of Chicago sign and plenum requirements
