Description

HAZARDOUS / HIGH BAY

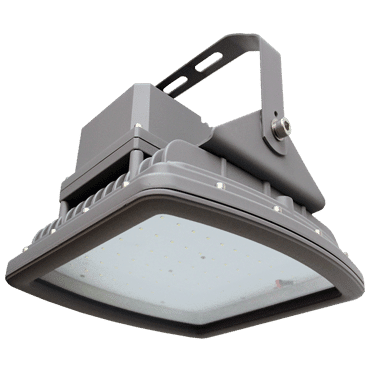

Beghelli launches CASTEX (CAS), a family of high bay LED fixtures ideal for use in areas made HAZARDOUS by abnormal conditions, resulting in the presence of flammable vapors, gases or combustible dusts.

The CASTEX family is Class I Division 2, Groups A, B, C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.

CASTEX Original has different mounting options (surface, wall and pendant mounts) equipped with integral hub set screws for vibration resistance.

The heavy-duty, integral square aluminum housing serves as a high-efficiency heat sink, dissipating heat and further protecting the system.

Features:

• LO: 3,000 lm/ 30W
• MO: 11,000 lm/ 100W
• HO: 20,000 lm/ 200W
• 120° standard optic distribution
• 3000K, 4000K and 5000K
• HT (AC Only) -40°F up to 122°F
• >70 CRI
• 0-10V dimming is standard
• HT (AC Only)
• IK09 rated
• IP67 rated
